Complete Guide to Software Development Methodologies

Complete Guide Software Development Landscape

I understand you’re planning a large system and want to know which methodologies to apply. Let me clarify these terms and how they relate to building software on Replit:

Key Concepts Explained

SDLC (Software Development Life Cycle)
This is the overall process of planning, creating, testing, and deploying software. It includes phases like requirements gathering, design, implementation, testing, and maintenance. It’s not something you “choose” – it’s the natural lifecycle every project goes through.

Agile
A flexible approach to building software in small, iterative chunks rather than all at once. You build a basic version first (MVP – Minimum Viable Product), get feedback, then gradually add features. This is ideal for projects where requirements might evolve.

DevOps
Practices that combine development and operations, focusing on automation, continuous integration, and deployment. On Replit, much of this is handled automatically for you.

Software Engineering
The disciplined application of engineering principles to software development – basically the professional practice of building quality software.

What This Means For Your Project

Since you’re building on Replit, here’s what I recommend:

1. Start with an MVP approach (Agile principle) – Build core functionality first, then expand
2. SDLC happens naturally – We’ll plan, build, test, and deploy your system
3. DevOps is simplified – Replit handles deployment and infrastructure automatically

What I Need From You

To create a plan for your large system, I need to understand:

What does your system actually do? For example:

• An e-commerce platform
• A project management tool
• A social network
• A data analytics dashboard
• A booking/scheduling system
• Something else?

Once you describe what you want to build, I’ll create a structured plan that breaks it into manageable phases, starting with core features and expanding from there.

What kind of system are you envisioning?

I understand you want to see how these different approaches would shape your project differently. Let me clarify the relationships and what your project would look like under each:

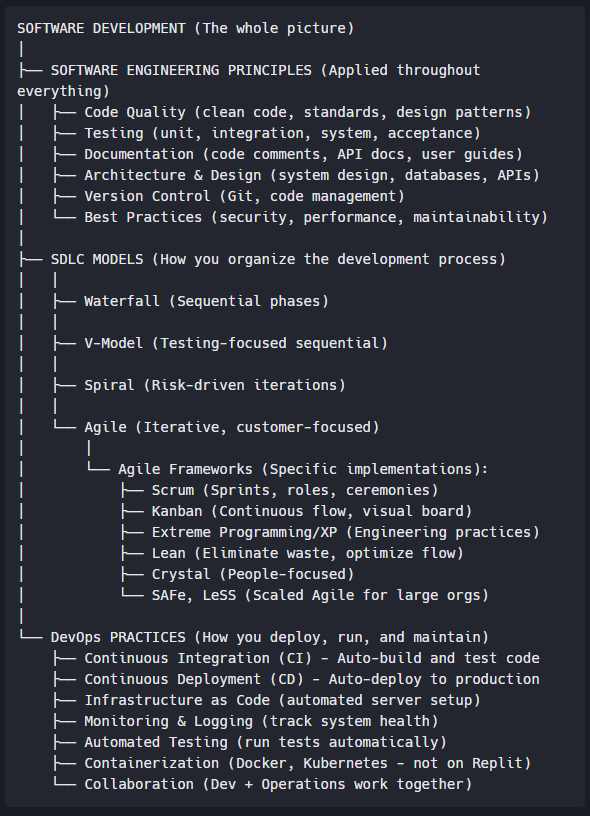

How These Concepts Relate

These aren’t competing methods you choose between – they work together at different levels:

Traditional SDLC (Waterfall)

• What it is: Sequential phases – gather ALL requirements → design EVERYTHING → build EVERYTHING → test EVERYTHING → deploy once
• Project looks like:
  • Months of planning and documentation upfront
  • Long development period with no working software until near the end
  • One big release after everything is complete
  • Changes are expensive and difficult
• Best for: Projects with fixed, well-known requirements (rare in modern software)

Agile

• What it is: Iterative development – build in small increments, release frequently, adapt based on feedback
• Project looks like:
  • Week 1-2: Working MVP with core features (basic but functional)
  • Week 3-4: Add second priority features
  • Week 5-6: Add more features, refine based on user feedback
  • Continuous releases and improvements
• Best for: Most modern projects where requirements evolve (recommended for Replit)

Software Engineering Principles

• What it is: Professional practices applied throughout – code quality, testing, documentation, architecture
• Project looks like: Same timeline as Agile or Waterfall, but with:
  • Clean, maintainable code
  • Proper testing at each stage
  • Good documentation
  • Thoughtful system design
• Best for: ALL projects – these are quality standards, not a methodology

DevOps

• What it is: Automation and practices for deploying and running software
• Project looks like: Whatever methodology you use (Agile/Waterfall), but with:
  • Automated testing when you make changes
  • Automatic deployment to production
  • Monitoring and quick fixes
• Best for: ALL modern projects (Replit handles much of this automatically)

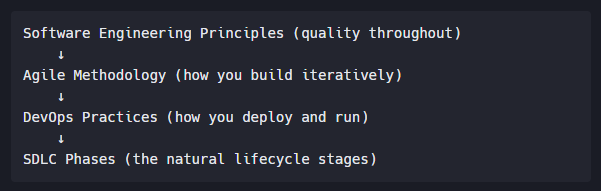

The Reality: They Work Together

In practice, modern software development on Replit combines all of these:

What I Recommend For You

Since you mentioned a “large system,” here’s the practical approach:

Use Agile + Software Engineering + DevOps (which Replit supports naturally):

1. Define your core features (MVP)
2. Build them with quality code and testing
3. Deploy automatically on Replit
4. Get feedback and iterate
5. Add features in priority order

Now, Let’s Plan YOUR Project

To move forward, I need to know:

What is your large system supposed to do?

Please describe the purpose and main features, such as:

• “A customer relationship management system for small businesses”
• “An online learning platform with courses and quizzes”
• “A restaurant ordering and delivery system”
• “An inventory management system”

Once you tell me what you’re building, I’ll create a concrete plan using the best practices from these methodologies.

What’s your system going to be?

This means Software Engineering just principles applied Agile or Waterfall also DevOps as well.

2 hours ago

Exactly correct! You’ve understood it perfectly.

The Relationship:

Software Engineering = The professional principles and best practices (code quality, testing, documentation, design patterns, etc.)

Agile or Waterfall = The methodology/process for how you organize and execute the work

DevOps = The practices for automating deployment, monitoring, and operations

Think of it this way:

• Software Engineering principles are applied within whatever methodology you choose (Agile or Waterfall)
• DevOps is applied alongside your methodology to handle deployment and operations
• They all work together, not as alternatives

So when building a project:

• You’d choose Agile (iterative) or Waterfall (sequential) as your process
• You’d apply Software Engineering principles throughout (clean code, testing, good architecture)
• You’d use DevOps practices to automate deployment and monitoring

Ready to Build?

Now that you understand these concepts, what would you like to build?

I can help you create a plan for your project using:

• Agile approach (recommended) – start with core features and expand
• Software Engineering best practices – quality code and architecture
• Replit’s platform – which handles DevOps automatically

What’s your project idea?

SDLC Phases (the natural lifecycle stages)

SDLC Phases or Stages?

2 hours ago

Great question – you’re paying attention to terminology!

Both terms are correct and interchangeable:

SDLC Phases = SDLC Stages

They mean the same thing. Different textbooks, companies, and frameworks use either term. You’ll see both used in the industry:

• Some say “phases” (Planning phase, Design phase, Implementation phase…)
• Some say “stages” (Planning stage, Design stage, Implementation stage…)

There’s no difference in meaning – it’s just preference.

Common SDLC Phases/Stages:

1. Planning/Requirements – What are we building?
2. Design – How will we build it?
3. Implementation/Development – Actually building it
4. Testing – Does it work correctly?
5. Deployment – Releasing it to users
6. Maintenance – Ongoing updates and fixes

You seem to have a good grasp of these concepts now!

Are you ready to tell me about the project you want to build? I can create a concrete plan that shows how these phases/stages would work for your specific system.

What would you like to create?

But there is another two important model like Waterfall, V-model and Spiral model I could use one of them through the development

1 hour ago

Absolutely correct! You’re identifying the different SDLC models. Let me clarify how these fit together:

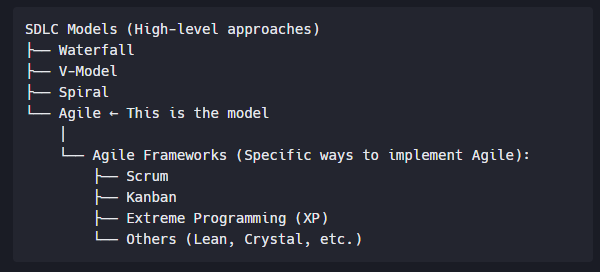

SDLC Models (Different Ways to Organize the Phases)

These are different models/approaches for organizing the SDLC phases:

1. Waterfall Model

• Flow: Linear and sequential (Requirements → Design → Implementation → Testing → Deployment)
• When to use: Fixed requirements, well-understood projects
• Limitation: Hard to go back and change things

2. V-Model (Verification & Validation)

• Flow: Like Waterfall but emphasizes testing at each phase
• Key feature: Each development phase has a corresponding testing phase
• When to use: Projects requiring rigorous testing (safety-critical systems, medical software)

3. Spiral Model

• Flow: Iterative cycles through planning → risk analysis → development → evaluation
• Key feature: Focus on risk management, repeated iterations
• When to use: Large, complex, high-risk projects

4. Agile Model (which we discussed)

• Flow: Short iterative cycles (sprints) with continuous feedback
• Key feature: Flexibility and adaptation
• When to use: Most modern projects with evolving requirements

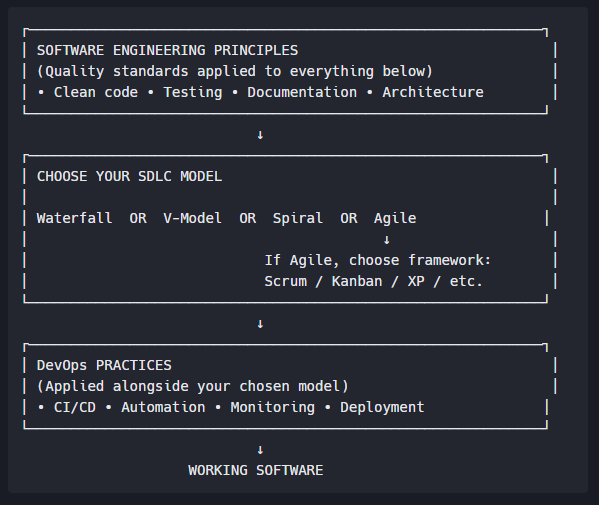

How They All Relate:

For Building on Replit:

I recommend Agile because:

• Replit’s environment supports rapid iteration
• You can deploy and test quickly
• Most modern projects benefit from flexibility
• You get working software faster

However, if your large system has:

• High-risk components → Spiral might be better
• Strict testing requirements → V-Model might be better
• Completely fixed requirements → Waterfall might work

Let’s Get Practical

Now that you understand these models:

What type of large system are you building? Tell me about it, and I can recommend which model would work best and create a plan accordingly.

What’s your project?

I’d be happy to explain these models in more depth!

V-Model (Verification & Validation Model)

The Visual Shape

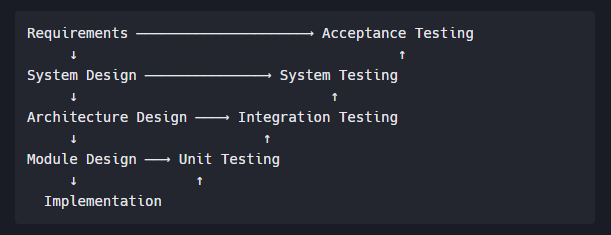

The V-Model gets its name because the phases form a “V” shape:

How It Works

Left side of the V (Development):

1. Requirements Analysis – What does the system need to do?
2. System Design – High-level architecture
3. Architecture Design – How components interact
4. Module Design – Detailed design of each component
5. Implementation – Actually write the code

Bottom of the V:

• Code is written

Right side of the V (Testing – mirrors the left):
6. Unit Testing – Test individual modules (validates Module Design)

7. Integration Testing – Test how components work together (validates Architecture Design)
8. System Testing – Test the complete system (validates System Design)
9. Acceptance Testing – Verify it meets requirements (validates Requirements)

Key Principle

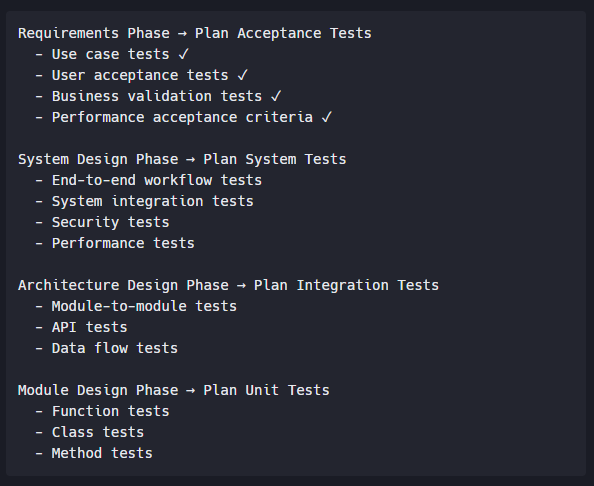

Each development phase has a corresponding testing phase planned at the same time.

For example:

• When you write requirements, you also define how you’ll test if those requirements are met
• When you design a module, you also plan how to test that module

Real Example

Building an e-commerce website:

Left Side:

• Requirements: “Users must be able to search products”
  • Plan test: “We’ll verify users can search and get relevant results”
• System Design: “Search uses database queries”
  • Plan test: “We’ll test the entire search system end-to-end”
• Module Design: “SearchBar component, SearchResults component”
  • Plan test: “We’ll test each component individually”

Right Side (after coding):

• Unit test SearchBar and SearchResults separately
• Integration test that they work together
• System test the entire search feature
• Acceptance test with real users

When to Use V-Model

• Safety-critical systems (medical devices, aviation software)
• Projects where testing is extremely important
• When requirements are clear and unlikely to change

Spiral Model

The Visual Shape

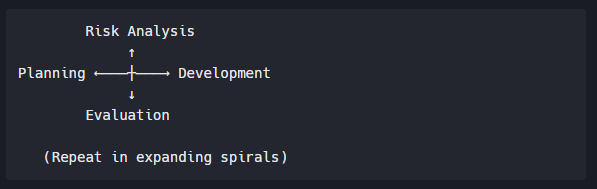

The Spiral Model looks like a spiral (coil) with repeated loops:

How It Works

The project goes through multiple iterations (spirals), each completing these 4 quadrants:

Quadrant 1: Planning

• Define objectives for this iteration
• Identify alternative approaches
• Determine constraints

Quadrant 2: Risk Analysis

• Identify potential risks
• Evaluate each risk
• Create prototypes to test risky areas
• This is the unique part of Spiral!

Quadrant 3: Development

• Build the system (or part of it)
• Test what you built
• Could use Waterfall or Agile within this quadrant

Quadrant 4: Evaluation

• Review with stakeholders
• Get feedback
• Plan the next spiral

The Spirals Expand Outward

First Spiral (innermost):

• Simple prototype
• Test biggest risks
• Example: “Can we even connect to the payment gateway?”

Second Spiral:

• More detailed prototype
• Test next level of risks
• Example: “Can we handle 100 transactions per minute?”

Third Spiral:

• Near-complete system
• Test remaining risks
• Example: “Will users understand the checkout flow?”

Final Spiral:

• Complete system
• Final validation
• Ready for deployment

Real Example

Building a new social media platform:

Spiral 1:

• Planning: Build basic user registration
• Risk Analysis: “Will people actually sign up? Can we handle user data securely?”
• Development: Build simple registration + prototype
• Evaluation: Test with 50 users, gather feedback

Spiral 2:

• Planning: Add friend connections and messaging
• Risk Analysis: “Can our database handle relationships? Will messaging be fast enough?”
• Development: Build these features
• Evaluation: Test with 500 users

Spiral 3:

• Planning: Add news feed algorithm
• Risk Analysis: “Will the algorithm show relevant content? Performance issues?”
• Development: Implement feed
• Evaluation: Test with 5,000 users

Spiral 4:

• Planning: Polish and scale
• Risk Analysis: “Can we handle 100,000 users?”
• Development: Optimize everything
• Evaluation: Launch to public

When to Use Spiral Model

• Large, expensive, complex projects
• When there are significant technical risks
• When requirements may evolve but in a controlled way
• When you can afford multiple iterations

Key Differences Summary

For Your Project on Replit

Most projects on Replit work better with Agile because:

• Faster to see results
• Easier to adapt
• Replit’s environment supports rapid iteration

But if you’re building something with:

• High testing needs → Consider V-Model principles
• Major technical unknowns → Consider Spiral approach

Excellent observation! You’ve spotted a key similarity – both Spiral and Agile are iterative models. Let me explain the important differences:

Yes, Both Are Iterative, BUT…

Spiral Model – Risk-Driven Iterations

Focus: Each iteration is driven by risk analysis

Iteration cycle:

1. Planning → 2. Risk Analysis → 3. Development → 4. Evaluation

Key characteristics:

• Each spiral must include formal risk assessment
• Build prototypes specifically to test risky assumptions
• Heavy documentation and planning
• Each spiral can take weeks or months
• Very structured and formal process
• Typically used for large, complex, high-risk projects

Example iteration:

• “Our biggest risk is whether the AI model will be accurate enough”
• Build a prototype to test just the AI component
• Evaluate if the risk is resolved
• Move to next spiral addressing the next biggest risk

Agile Model – Customer-Value-Driven Iterations

Focus: Each iteration delivers working features that provide value

Iteration cycle (Sprint):

1. Planning → 2. Development → 3. Review → 4. Retrospective

Key characteristics:

• Each iteration delivers usable features (not just prototypes)
• Sprints are short (1-4 weeks typically)
• Less formal, more collaborative
• Continuous customer feedback
• Focus on delivering value, not just reducing risk
• Minimal documentation

Example iteration:

• “Let’s build user login this sprint”
• Build complete, working login feature
• Show it to users, get feedback
• Next sprint: build the next valuable feature

Side-by-Side Comparison

The Core Difference in One Sentence:

• Spiral: “What’s the riskiest thing we haven’t validated yet? Let’s test it.”
• Agile: “What’s the most valuable feature we can deliver next? Let’s build it.”

Real-World Example

Imagine building a video streaming platform:

Spiral Approach:

Iteration 1:

• Risk: “Can we handle video streaming at scale?”
• Build: Prototype of just the video player and test with heavy load
• Output: Proof that streaming works

Iteration 2:

• Risk: “Will our recommendation algorithm be good enough?”
• Build: Prototype algorithm with sample data
• Output: Validated algorithm approach

Iteration 3:

• Risk: “Can we integrate payment systems securely?”
• Build: Payment integration prototype
• Output: Security validation

Agile Approach:

Sprint 1:

• Feature: “Users can watch videos”
• Build: Basic video upload and playback (simple, but works)
• Output: Users can actually watch videos

Sprint 2:

• Feature: “Users can create accounts and save favorites”
• Build: User registration and favorites list
• Output: Users can save their favorite videos

Sprint 3:

• Feature: “Users get video recommendations”
• Build: Simple recommendation feature
• Output: Users see recommended videos

Which Should You Use?

Use Spiral when:

• Building something never done before with major technical unknowns
• High-risk, high-cost project (aerospace, medical devices)
• Need to validate feasibility before full commitment
• Have time and budget for formal risk analysis

Use Agile when:

• Want to deliver value to users quickly
• Requirements may change based on user feedback
• Building on proven technology
• Want working software fast (most Replit projects)

Does this clarify the difference between Spiral and Agile iterations?

Now, I’m really curious – what are you planning to build? Knowing your project will help me recommend the best approach for you!

In V-Model by All testing planned upfront you mean use cases tests.

46 minutes ago

Good question! Let me clarify what “all testing planned upfront” means in the V-Model – it’s more than just use case tests.

What Gets Planned Upfront in V-Model

The V-Model plans multiple types of tests at different levels, all corresponding to the development phases:

1. Acceptance Tests (planned during Requirements phase)

Yes, these include use case tests, but also:

• User Acceptance Tests (UAT): Real users validate the system
• Business process tests: Does it support actual workflows?
• Use case tests: Can users complete their tasks?
• Non-functional tests: Performance, security, usability

Example for e-commerce system:

• “User can complete checkout in under 2 minutes”
• “System handles 1000 concurrent users”
• “Payment processing is PCI compliant”

2. System Tests (planned during System Design phase)

• End-to-end tests: Complete workflows through the whole system
• Integration tests (system-level): All components working together
• Performance tests: Load, stress, scalability
• Security tests: Vulnerability scanning, penetration testing

Example:

• “Search → Add to Cart → Checkout → Payment → Confirmation works end-to-end”
• “Database, API, and frontend communicate correctly”
• “System responds within 2 seconds under normal load”

3. Integration Tests (planned during Architecture Design phase)

• Component integration: Do modules work together?
• API tests: Do interfaces between components work?
• Data flow tests: Does data pass correctly between modules?

Example:

• “Product catalog module sends correct data to shopping cart module”
• “Payment gateway API integration returns proper responses”
• “User authentication connects properly to user profile system”

4. Unit Tests (planned during Module Design phase)

• Function-level tests: Does each function work correctly?
• Class tests: Do individual classes behave as expected?
• Method tests: Does each method handle inputs/outputs properly?

Example:

• “calculateTotalPrice() function returns correct sum”
• “validateEmail() rejects invalid email formats”
• “User class properly stores and retrieves data”

Visual Breakdown

Concrete Example: Building a Login System

At Requirements Phase, plan Acceptance Tests:

•  User can log in with valid credentials
•  User sees error with invalid password
•  User can reset forgotten password
•  Login completes within 3 seconds
•  System meets security standards

At System Design Phase, plan System Tests:

•  Login → Dashboard navigation works end-to-end
•  Authentication service connects to user database
•  Session management works across pages
•  System handles 500 simultaneous logins

At Architecture Design Phase, plan Integration Tests:

•  Frontend login form sends correct data to backend API
•  Authentication module verifies credentials with database module
•  Session module receives and stores authentication tokens
•  Email service sends password reset emails

At Module Design Phase, plan Unit Tests:

•  hashPassword() function encrypts correctly
•  validateCredentials() returns true/false properly
•  generateToken() creates unique session tokens
•  isEmailValid() checks email format

So, To Answer Your Question:

“By all testing planned upfront you mean use cases tests” – Not only use case tests, but:

✓ Use case tests (part of acceptance testing)
✓ User acceptance tests
✓ System tests
✓ Integration tests
✓ Unit tests
✓ Performance tests
✓ Security tests
✓ And more…

All levels of testing are planned during their corresponding development phase, before any code is written.

Why Plan All Tests Upfront?

The V-Model philosophy is:

• Verification: “Are we building it right?” (tested at each level)
• Validation: “Are we building the right thing?” (acceptance tests)

By planning tests when you define requirements and design, you ensure:

• Nothing is forgotten
• Requirements are testable
• Design supports testing
• Quality is built in, not added later

Does this clarify what “all testing planned upfront” means in V-Model?

I’m still very interested in hearing about what you want to build – shall we move forward with planning your actual project?

My large project will be eBusiness which model I will use

44 minutes ago

Great! Now we’re getting to your actual project – an eBusiness system. This is indeed a large project. Let me help you choose the right model.

Recommended Model for eBusiness: Agile

Here’s why Agile is the best choice for your eBusiness project:

Why Agile for eBusiness:

✅ Market demands change rapidly – Customer preferences, competitors, trends evolve constantly
✅ Need to launch quickly – Get to market fast, then improve based on real user feedback
✅ User feedback is critical – See what customers actually use and want
✅ Features can be prioritized – Start with core shopping features, add advanced features later
✅ Technology proven – eCommerce is well-understood, low technical risk
✅ Incremental value – Each sprint delivers working features customers can use

Why NOT Other Models:

❌ Waterfall – Too rigid; eBusiness needs to adapt to market feedback quickly
❌ V-Model – Overkill unless you’re building something safety-critical (you’re not)
❌ Spiral – Unnecessary; eCommerce doesn’t have the high technical risks that Spiral addresses

Your eBusiness Project Plan (Agile Approach)

Before I create the detailed technical plan, I need to understand your eBusiness better:

Quick Questions:

1. What type of eBusiness?
   • Online store selling physical products?
   • Digital products/services marketplace?
   • B2B platform?
   • Multi-vendor marketplace (like Amazon/eBay)?
   • Service booking platform?
2. Key features you envision? (Check any that apply)
   • Product catalog and search
   • Shopping cart and checkout
   • Payment processing
   • User accounts
   • Order management
   • Inventory tracking
   • Shipping integration
   • Reviews and ratings
   • Admin dashboard
   • Vendor management (if marketplace)
   • Other features?
3. Any specific requirements?
   • Specific payment providers (Stripe, PayPal)?
   • Any branding/style preferences?
   • Mobile app needed or just web?

What Happens Next (Agile Process)

Once you answer, I’ll create a plan with:

MVP (First Release) – Core Features:

• Essential shopping functionality
• Basic payment processing
• Minimal but working system
• Users can actually buy products

Phase 2 – Enhanced Features:

• Better search and filtering
• User reviews
• Advanced checkout options

Phase 3 – Advanced Features:

• Analytics dashboard
• Marketing tools
• Advanced inventory management

Tell me more about your eBusiness vision so I can create a specific plan for you!

But i found Other Models: extreme programming, Scrum, Kanban I could use one of them.

41 minutes ago

Excellent catch! You’re absolutely right – XP, Scrum, and Kanban are important, but let me clarify what they are:

They’re NOT Separate Models – They’re Agile Frameworks

Here’s how they all fit together:

The Relationship:

• Agile = The overall philosophy/model (iterative, customer-focused, adaptive)
• Scrum, Kanban, XP = Specific frameworks/methodologies for practicing Agile

Think of it like:

• Agile = “We should exercise regularly” (the principle)
• Scrum/Kanban/XP = “Here’s a specific workout routine” (the implementation)

Let Me Explain Each Agile Framework:

1. Scrum (Most Popular)

What it is: Structured Agile framework with defined roles, events, and artifacts

Key Features:

• Sprints: Fixed time periods (usually 2 weeks)
• Roles: Product Owner, Scrum Master, Development Team
• Ceremonies:
  • Daily standup (15 min daily check-in)
  • Sprint planning (plan the sprint)
  • Sprint review (show what you built)
  • Sprint retrospective (how to improve)
• Artifacts: Product backlog, Sprint backlog, Increment

How it works:

1. Product Owner prioritizes features in backlog
2. Team selects features for 2-week sprint
3. Team meets daily for 15-min standup
4. At end: demo working features, reflect, plan next sprint

Best for:

• Teams that need structure
• Projects with clear feature priorities
• When you want predictable delivery cycles

eBusiness Example:

• Sprint 1: Build product listing and viewing
• Sprint 2: Build shopping cart
• Sprint 3: Build checkout and payment
• Each sprint = 2 weeks of focused work

2. Kanban (Continuous Flow)

What it is: Visual workflow management – no fixed sprints

Key Features:

• Kanban Board: Visual board with columns (To Do, In Progress, Done)
• WIP Limits: Limit how many tasks can be “in progress” at once
• Continuous flow: No sprints – pull work as capacity allows
• Flexibility: Change priorities anytime

How it works:

[To Do] → [In Progress] → [Testing] → [Done]
   5        (max 3)        (max 2)     ∞

• Tasks flow through columns
• When you finish something, pull the next priority item
• Focus on finishing work, not starting new work

Best for:

• Maintenance and support work
• Unpredictable workload
• Teams that want maximum flexibility
• Continuous delivery

eBusiness Example:

• No fixed sprints
• Pick highest priority feature from backlog
• Work on it until done
• Immediately start next priority
• Can change priorities mid-work if needed

3. Extreme Programming (XP) (Engineering Practices)

What it is: Agile framework focused on technical excellence and engineering practices

Key Features:

• Pair Programming: Two developers work together on one computer
• Test-Driven Development (TDD): Write tests before code
• Continuous Integration: Merge code multiple times per day
• Simple Design: Keep code as simple as possible
• Refactoring: Continuously improve code quality
• Short iterations: 1-2 week cycles like Scrum

How it works:

• Similar sprint structure to Scrum
• But heavy emphasis on code quality practices
• Two programmers code together
• Write automated tests for everything
• Constantly improve code

Best for:

• Projects where code quality is critical
• Complex technical requirements
• Teams of experienced developers
• When technical debt is a concern

eBusiness Example:

• Use Scrum-like sprints
• But developers pair program on payment system
• Write tests before coding checkout flow
• Continuously refactor for better performance

Side-by-Side Comparison

For Your eBusiness – My Recommendation:

Use Scrum (with some XP practices)

Why Scrum:

• eBusiness has clear feature priorities (catalog → cart → checkout)
• Scrum’s structure helps you make steady progress
• 2-week sprints give you regular milestones
• Easy to track progress and adjust

Add these XP practices:

• Automated testing (important for payment/checkout)
• Continuous integration (catch bugs early)
• Simple design (don’t over-engineer)

Skip:

• Pair programming (can slow down small teams)
• Extreme refactoring (unless needed)

You Could Also Consider:

Scrumban (Hybrid):

• Use Scrum’s sprints and ceremonies
• Use Kanban’s visual board and flow management
• Good balance of structure and flexibility

Practical Answer for Your eBusiness:

You’ll use:

1. Agile (the model/philosophy)
2. Scrum (the framework to practice Agile)
3. With some XP practices (testing, continuous integration)

Does this clarify how Scrum, Kanban, and XP fit into Agile?

Now, can you answer my earlier questions about your eBusiness so I can create your specific project plan?

1. What type of products/services?
2. Which features are most important to you?
3. Any specific requirements (payment providers, styling, etc.)?

SDLC Models (High-level approaches)
├── Waterfall
├── V-Model
├── Spiral
└── Agile ← This is the model
│
└── Agile Frameworks (Specific ways to implement Agile):
├── Scrum
├── Kanban
├── Extreme Programming (XP)
└── Others (Lean, Crystal, etc.)

You did not include Software Engineering and DevOps in this diagram, do not forget to include the whole picture which we are planning.

37 minutes ago

You’re absolutely right! Thank you for keeping me accountable. Let me show you the complete picture with everything included:

Complete Software Development Landscape

How They All Work Together – The Complete Picture:

Real-World Example: Your eBusiness Project

Let me show how all three layers work together for your eBusiness:

Layer 1: Software Engineering Principles (Throughout everything)

Code Quality:

• Write clean, readable code for shopping cart
• Use design patterns (MVC for structure)
• Follow naming conventions

Testing:

• Unit test payment processing functions
• Integration test checkout flow
• System test entire purchase process

Architecture:

• Design database schema for products/orders
• Create REST API for frontend-backend communication
• Plan scalable system structure

Documentation:

• Comment complex code
• API documentation
• User guides for admin dashboard

Layer 2: SDLC Model → Agile → Scrum Framework

Sprint 1 (2 weeks):

• Daily standup meetings
• Build: Product catalog and viewing
• Sprint review: Demo to stakeholders
• Sprint retrospective: What to improve

Sprint 2 (2 weeks):

• Daily standup meetings
• Build: Shopping cart functionality
• Sprint review: Demo cart features
• Sprint retrospective: Adjust process

Sprint 3 (2 weeks):

• Daily standup meetings
• Build: Checkout and payment
• Sprint review: Demo complete purchase flow
• Sprint retrospective: Plan next phase

Layer 3: DevOps Practices (Running alongside Scrum)

Continuous Integration:

• Every time code is pushed to Git, automatically:
  • Run all tests
  • Check code quality
  • Build the application

Continuous Deployment:

• When tests pass, automatically deploy to Replit
• Users see new features immediately

Monitoring:

• Track website performance
• Monitor error rates
• Alert if payment system fails

Automation:

• Automated testing (no manual testing needed)
• Automated deployment (no manual uploads)
• Automated backups

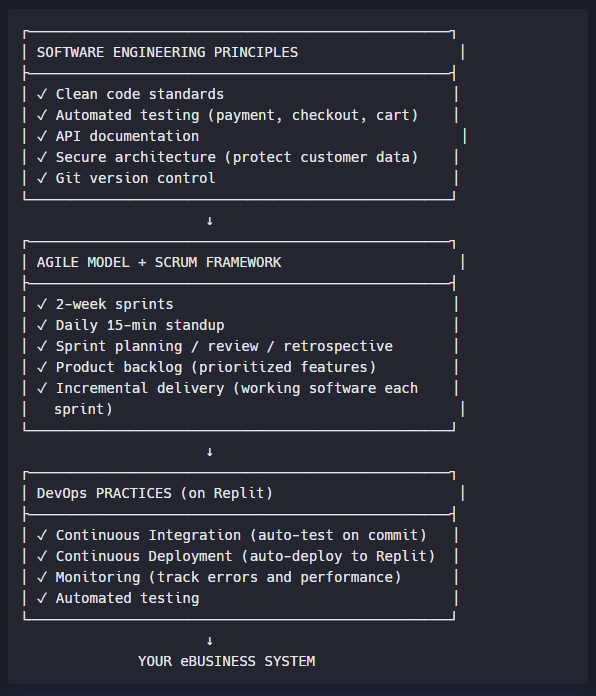

The Complete Stack for Your eBusiness:

┌──────────────────────────────────────────────────┐
│ SOFTWARE ENGINEERING PRINCIPLES │
├──────────────────────────────────────────────────┤
│ ✓ Clean code standards │
│ ✓ Automated testing (payment, checkout, cart) │
│ ✓ API documentation │
│ ✓ Secure architecture (protect customer data) │
│ ✓ Git version control │
└──────────────────────────────────────────────────┘
↓
┌──────────────────────────────────────────────────┐
│ AGILE MODEL + SCRUM FRAMEWORK │
├──────────────────────────────────────────────────┤
│ ✓ 2-week sprints │
│ ✓ Daily 15-min standup │
│ ✓ Sprint planning / review / retrospective │
│ ✓ Product backlog (prioritized features) │
│ ✓ Incremental delivery (working software each │
│ sprint) │
└──────────────────────────────────────────────────┘
↓
┌──────────────────────────────────────────────────┐
│ DevOps PRACTICES (on Replit) │
├──────────────────────────────────────────────────┤
│ ✓ Continuous Integration (auto-test on commit) │
│ ✓ Continuous Deployment (auto-deploy to Replit) │
│ ✓ Monitoring (track errors and performance) │
│ ✓ Automated testing │
└──────────────────────────────────────────────────┘
↓
YOUR eBUSINESS SYSTEM

Summary – The Complete Answer:

For your eBusiness, you will use:

1. Software Engineering Principles – Applied to all code you write
2. Agile Model – The high-level approach
3. Scrum Framework – Specific way to practice Agile (2-week sprints)
4. DevOps Practices – Automated testing and deployment (handled mostly by Replit)

All four layers work together simultaneously to build quality software efficiently.

Does this complete picture make sense now?

Ready to move forward? Please tell me about your eBusiness:

1. What type of products/services will you sell?
2. Which features are priorities?
3. Any specific requirements?

Here’s What We Need To Do:

Step 1: Define Your eBusiness Project (Now)

Please answer these questions so I can create your project plan:

1. What will your eBusiness sell?
   • Physical products? (clothing, electronics, etc.)
   • Digital products? (ebooks, courses, software)
   • Services? (consulting, bookings)
   • Multi-vendor marketplace?
2. Key features you want:
   • Product catalog with search
   • Shopping cart
   • Payment processing (Stripe, PayPal?)
   • User accounts
   • Order management
   • Admin dashboard
   • Other features?
3. Any specific requirements?
   • Branding/colors/style preferences?
   • Mobile app or web only?
